H62 PIPE
Brass pipes have characteristics such as: light weight, good thermal conductivity, high strength at low temperatures.Brass pipes are rugged and resistant to corrosion.
MOQ : 1MT
WT : 1-50MM
Length : 500～5000MM
OD : 10-300 MM
Properties
| Alloy |
product |
shape |
Temper |
Size |
||
| OD. |
WT. |
Length (mm) |
||||
| H62 |
Extruded pipes |
Round
|
R |
60～300 |
5～42.5 |
500～6000 |
| 135～140 |
45 |
500～2000 |
||||
| 145～200 |
45～50 |
500～2000 |
||||
| 205～260 |
45～50 |
500～1500 |
||||
| 265～300 |
45～50 |
500～1000 |
||||
| Drawn pipes |
Round |
Y、Y2、M、M2 |
10～200 |
0.8～10 |
OD.≤100 L1000～7000 |
|
| Y2、M |
38～200 |
10.5～17.5 |
||||
| 201～275 |
4～17.5 |
|||||
Chemical Composition
| Alloy |
Chemical Composition(%) |
||||
| Cu |
Fe |
Pb |
Zn |
Other Elements |
|
| H62 |
60.5-63.5 |
0.15 |
0.08 |
Rem. |
0.5 |
| C2801 |
59.0-62.0 |
0.07 |
0.1 |
Rem. |
- |
| C28000 |
59.0-63.0 |
0.07 |
0.30 |
Rem. |
- |
| Temper |
shape |
Diameter (or margin) |
Tensile Strength Rm/ (N/mm2) |
Elongation A/ % min |
HV |
HB |
| M |
Round |
3~40 |
≥300 |
43 |
60~90 |
55~85 |
| M2 |
40~80 |
≥360 |
25 |
75~110 |
70~105 |
|
| Y2 |
3~20 |
≥370 |
18 |
85~120 |
80~115 |
|
| Y |
20~80 |
≥440 |
- |
≥115 |
≥110 |
|
| R |
Round |
≤42.6 |
≥295 |
43 |
- |
- |
Features
1) Light Weight
2) Good Thermal Conductivity
3) Low Temperature
4) High Strength
5) Hardness
6) Corrosion Resistance
7) High Temperature
8) Pressure Resistanc

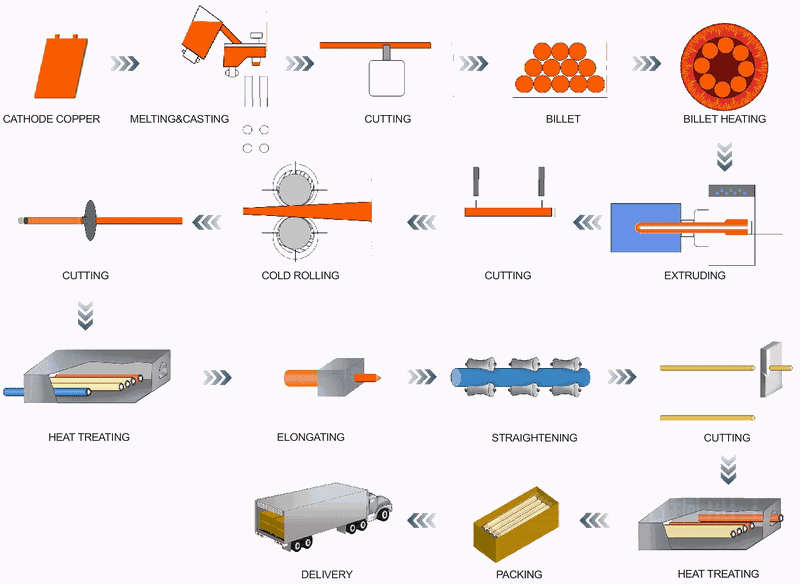

Drawn pipe/tube

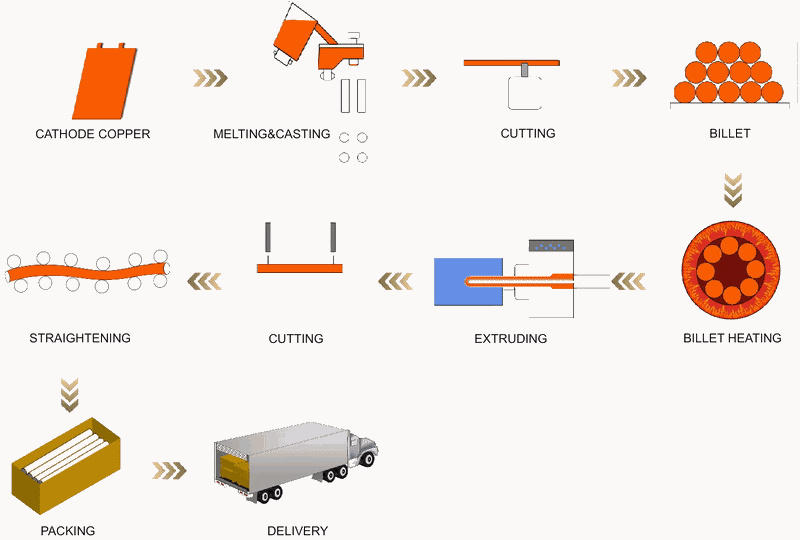

Extruded pipe/tube

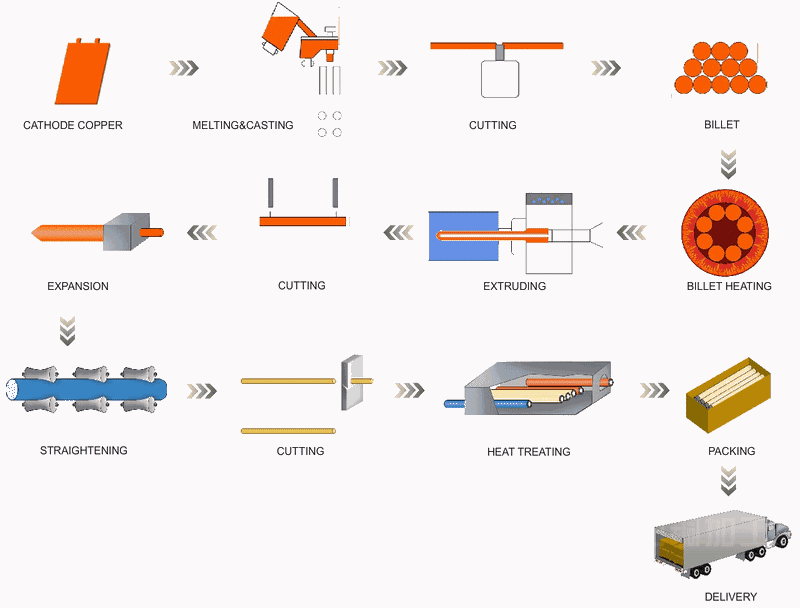

Drawn pipe/tube(big)
Typical Uses
Commonly used in the manufacture of heat transfer equipment (such as condenser, etc.), but also for oxygen equipment in the assembly of low temperature piping. Small diameter brass is often used to transport pressure of the liquid (such as lubrication systems, hydraulic systems, etc.) and for the instrument of the pressure pipe.
