H62 BAR
It has good mechanical properties, such as good plasticity, easy cutting, easy welding, easy welding, and corrosion resistance.We maintain inventory in rounds,square ,hexagonal,and rectangle (flat) bar.
MOQ : 1MT
Length : 500～5000MM
OD : 6-220 MM
Properties
| Alloy |
products |
shape |
Temper |
Size |
|
| OD. |
Length (mm),max. |
||||
| H62 |
Extruded bars |
round |
R |
10-220 |
Diameter(or margin)≤50 L1000～5000 Diameter(or margin)＞120 L300～4000。 |
| square , hexagonal |
10-50 |
||||
| rectangle (flat) |
10-120 |
||||
| Drawn bars |
Round, square , hexagonal |
Y2 |
6～60 |
Diameter (or margin)≤50 L1000～5000 |
|
| rectangle (flat) |
Y2 |
9～40
|
|||
Chemical Composition
| Alloy |
Chemical Composition |
||||
| Cu |
Fe |
Pb |
Zn |
other elements |
|
| H62 |
60.5-63.5 |
0.15 |
0.08 |
Rem. |
0.5 |
| C2801 |
59.0-62.0 |
0.07 |
0.1 |
Rem. |
- |
| C28000 |
59.0-63.0 |
0.07 |
0.30 |
Rem. |
- |
| Temper |
shape |
Diameter (or margin) |
Tensile Strength Rm/ (N/mm2) |
Elongation A/ % min |
| Y2 |
Round, square , hexagonal |
3~40 |
≥370 |
18 |
| 40~80 |
≥335 |
24 |
||
| rectangle (flat) |
3~20 |
≥335 |
17 |
|
| 20~80 |
≥335 |
23 |
||
| R |
- |
≤160 |
≥295 |
35 |
Features
1) Good wear resistance
2) Excellent corrosion resistance
3) High intensity
4) Hot Forging performance
5) Good cutting performance
6) Self-lubricating performance

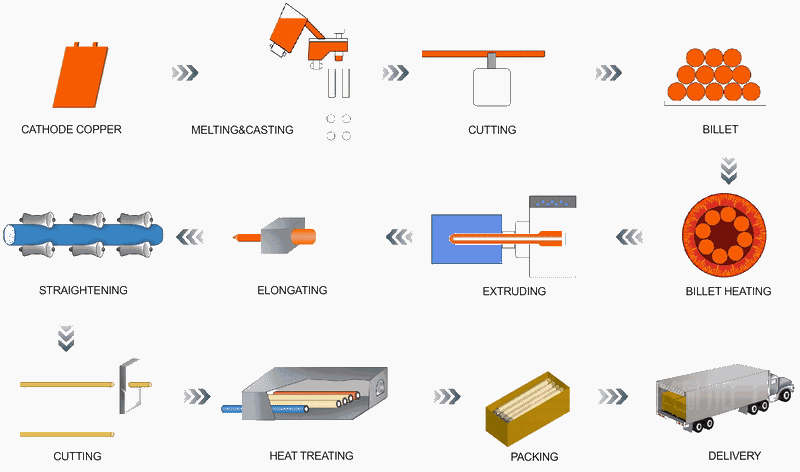

Drawn rod/bar

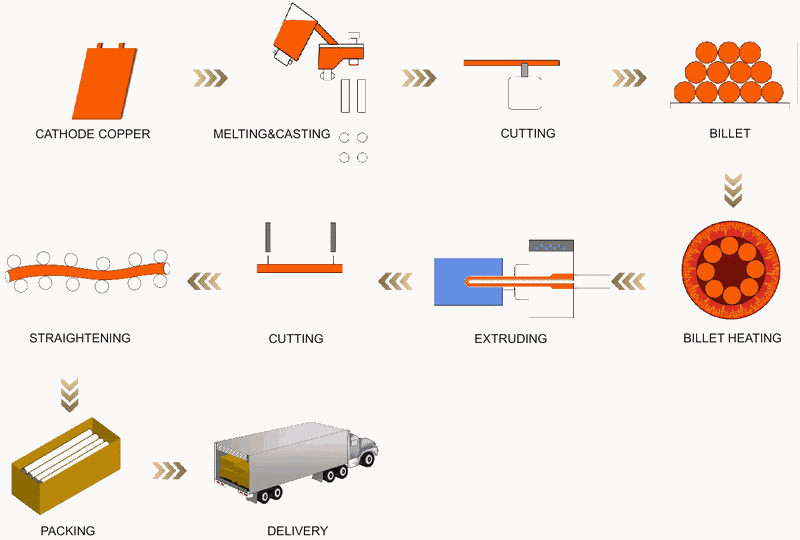

Extruded rod/bar
Typical Uses
All kinds of deep drawing and bending manufacturing parts
Please contact one of our knowledgeable sales staff to help you with your Copper needs.
