BFE10-1-1 PIPE
The alloy has good corrosion resistance to clean contaminated seawater and is used extensively on heat exchangers using seawater in power plants, desalination, petrochemical plants, etc.
WT : 1～25MM
Length : 500～15000MM
OD : 10～325 MM
Properties
| Alloy |
Product |
Temper |
Section size（mm） |
Length (mm),max. |
|
| OD. |
WT. |
||||
| BFe10-1-1 C7060 |
Drawn pipes |
M、Y2、Y |
10～160 |
1～8 |
OD.≤50 L1000～7000 OD.＞50 L500～6000 |
| BFe10-1.6-1 |
Copper Nickel tubes and Pipes for Marine shipbuilding |
M |
10～159 |
1.0～3.5 |
2000～6000 |
| BFe10-1.6-1 |
10～194 |
1.0～3.5 |
6000 |
||
| ＞194～325 |
3.0～5.5 |
Negotiated |
|||
| BFe10-1-1、 BFe10-1.6-1、C7060、7060X |
10～368 |
1.0～5.5 |
4000～6000 |
||
| 22-160 |
3-10 |
||||
| BFe10-1-1 C7060 |
Condenser and Heat Transfomer pipes |
M |
10～160 |
1～4.5 |
500～6000 |
| Y、Y2 |
10～76 |
1～4.5 |
＜15000 |
||
| BFe10-1-1 |
Extruded pipes |
R |
70～250 |
10～25 |
500～3000 |
| C7060 、C7060X |
C7060 、C7060X Negotiated |
||||
Chemical Composition
| Alloy |
Chemical Composition |
||||||||||||
| Cu |
Ni+Co |
Fe |
Mn |
Pb |
P |
S |
C |
Si |
Zn |
Sn |
impurities |
co |
|
| BFe10-1-1 |
Rem |
9.0-11.0 |
1.0-1.5 |
0.5~1.0 |
0.02 |
0.006 |
0.01 |
0.05 |
0.15 |
0.3 |
0.03 |
0.7 |
|
| BFe10 -1.5 -1 |
Rem |
10.0-11.0 |
1.0-2.0 |
0.50-1.0 |
0.01 |
― |
0.05 |
0.05 |
一 |
― |
一 |
0.6 |
|
| C7060 |
Rem |
9.0-11.0 |
1.0-1.8 |
0.2-1.0 |
0.02 |
|
|
|
|
0.5 |
|
|
|
| C70600 |
Rem |
9.0-11.0 |
1.0-1.8 |
1.0 |
0.05 |
|
|
|
|
1.0 |
|
|
|
| CuNil0FelMn |
Rem |
9.0-11.0(Ni） |
1.0-2.0 |
0.50-1.0 |
0.02 |
0.02 |
0.05 |
0.05 |
|
0.5 |
0.03 |
0.2 |
0.1 |
| Product |
Alloy |
Temper |
Section size（mm） |
Length (mm),max. |
|
| OD. |
WT. |
||||
| Drawn pipes |
BFe10-1-1 |
M、Y2、Y |
8～160 |
0.5～8 |
OD.≤50 L1000～7000 |
| BFe10-1-1 |
OD.＞50 L500～6000 |
||||
| Copper Nickel tubes and Pipes for Marine shipbuilding |
BFe10-1.6-1 |
M |
8～159 |
1.0～3.5 |
2000～6000 |
| BFe10-1.6-1 |
8～194 |
1.0～3.5 |
6000 |
||
| ＞194～325 |
3.0～5.5 |
Negotiated |
|||
| BFe10-1-1、 |
8～368 |
1.0～5.5 |
4000～6000 |
||
| BFe10-1.6-1、BFe10-1-1、7060X |
|||||
| Condenser and Heat Transfomer pipes and Pipes |
BFe10-1-1 |
M |
6～160 |
0.5～4.5 |
500～6000 |
| BFe10-1-1 |
Y、Y2 |
6～76 |
0.5～4.5 |
＜15000 |
|
| BFe10-1-1 |
M、 |
6～19 |
0.45～1.25 |
70～130Kg coils |
|
| BFe10-1-1 |
M、Y2 |
BFe10-1-1 Negotiated |
|||
| Extruded pipes |
BFe10-1-1 |
R |
70～250 |
10～25 |
YS/T662-2007 |
| BFe10-1-1 、C7060X |
BFe10-1-1 、C7060X Negotiated |
||||
| Temper |
Tensile Strength Rm/ (N/mm2) |
Elongation A/ % min |
HV |
HB |
| M |
≥290 |
30 |
75~110 |
70~105 |
| Y2 |
≥310 |
12 |
105 |
100 |
| Y |
≥480 |
8 |
150 |
145 |
Features
Copper-nickel alloy is excellent in corrosion resistance, mainly used in desalination evaporator, central air conditioning condenser, ship air cooler, petrochemical cooler, power plant steam turbine condenser.

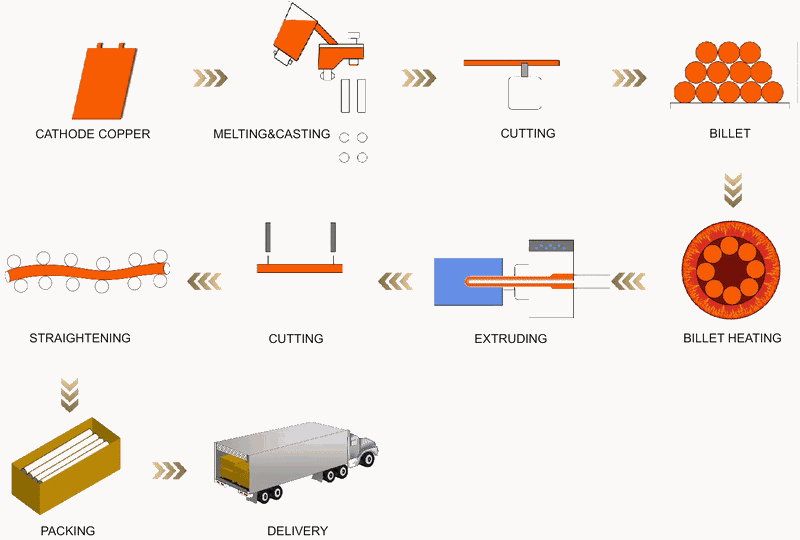

Drawn pipe/tube

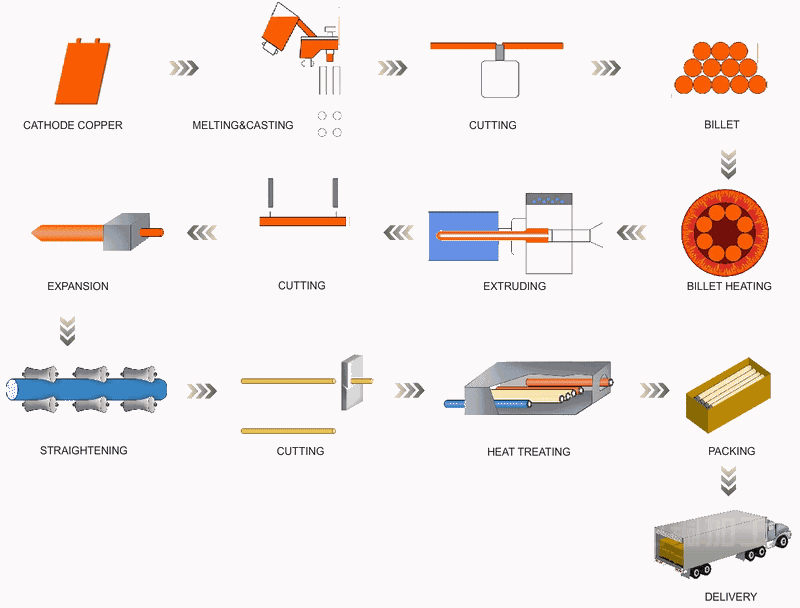

Drawn pipe/tube

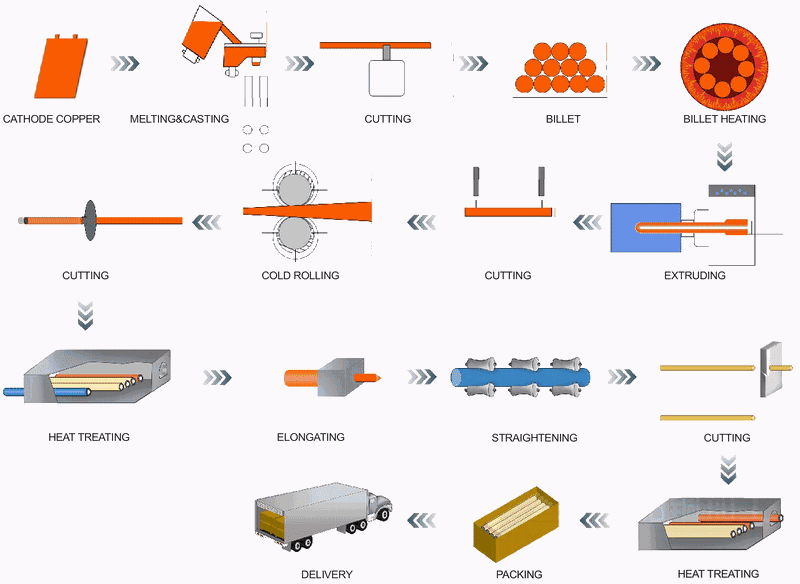

Extruded pipe/tube
Typical Uses
Corrosion resistant parts and condensers, heat exchangers
