C12200 PIPE
Copper pipe is the preferred material for water pipes,heating, refrigeration system of residential housing due to its high corrosion resistance , resistance to high temperature, high pressure,and can be used in a variety of environments .Also recognized for superior tensile strength, higher yield strength, good elongation, excellent thermal conductivity, good capacity for being cold worked, excellent capacity for being hot formed and excellent soldering and brazing.
MOQ : 1 MT
WT : 1-65 MM
Length : 500-7000 MM
OD : 10-350 MM
Properties
PROPERTIES
Chemical Composition
Alloy |
Chemical Composition |
|||
Cu |
P |
Fe |
Zn |
|
C12200 |
≥99.90 |
0.015-0.04 |
- |
- |
Product |
Alloy |
shape |
Temper |
Size |
||
OD. |
WT. |
Length (mm),max. |
||||
Extruded pipe |
C12200 |
round |
R |
60-300 |
5-65 |
L500-6000 |
Drawn pipe |
C12200 |
Round, |
M,M2,Y,T |
10-350 |
1-15 |
OD≤100 L1000～7000 |
Y2 |
10-100 |
1-10 |
||||
square , hexagonal |
M,Y |
38-330 |
10.5-20 |
Straight L1000-7000 Coil L≥6000 (OD＜30，WT.＜3) |
||
water pipe air pipe |
C12200 |
Round straight |
Y |
10-325 |
1-8 |
≤6000 |
Y2 |
10-159 |
|||||
M |
10-108 |
|||||
Round coil |
M |
≤28 |
1-2 |
≥15000 |
||
Cable pipe |
C12200 |
Round |
Y |
25-80 |
2.5-6.5 |
6000-14000 |
Features
1) Good wear resistance
2) Excellent corrosion resistance
3) High resistance to high temperature, high pressure
4) Hot Forging performance
5) Good cutting performance
6) Self-lubricating performance

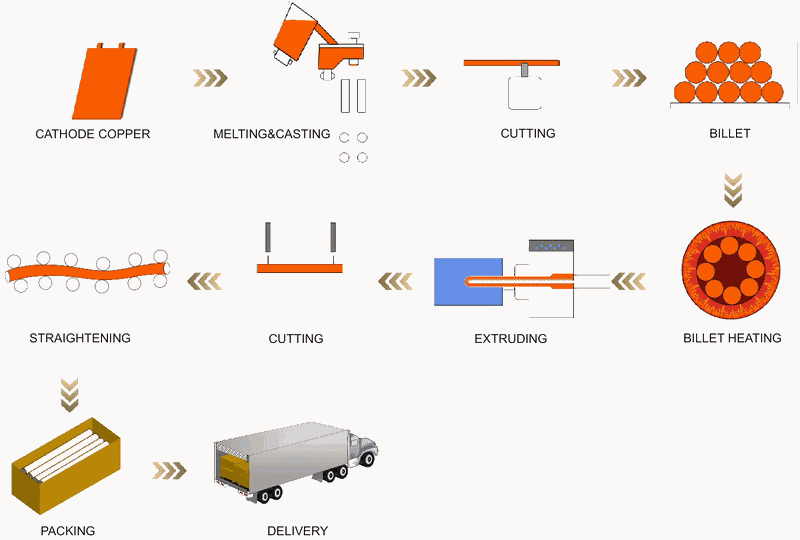

Extruded pipe

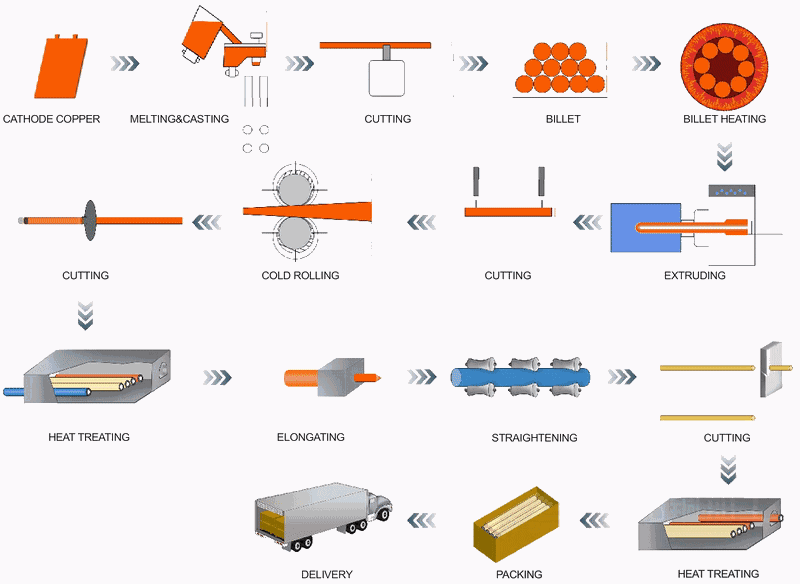

Drawn pipe
Typical Uses
Copper pipe is the preferred material for water pipes,heating, refrigeration system of residential housing due to its high corrosion resistance , resistance to high temperature, high pressure,and can be used in a variety of environments .
